pocketbase

repo:https://github.com/catwithtudou/pocketbase

1. 项目概览

readme

PocketBase is an open source Go backend that includes:

  • embedded database (SQLite) with realtime subscriptions
  • built-in files and users management
  • convenient Admin dashboard UI
  • and simple REST-ish API

For documentation and examples, please visit https://pocketbase.io/docs.

Overview:

  1. Use as standalone app

You could download the prebuilt executable for your platform from the Releases page. Once downloaded, extract the archive and run ./pocketbase serve in the extracted directory.

The prebuilt executables are based on the examples/base/main.go file and comes with the JS VM plugin enabled by default which allows to extend PocketBase with JavaScript (for more details please refer to Extend with JavaScript).

  1. Use as a Go framework/toolkit

PocketBase is distributed as a regular Go library package which allows you to build your own custom app specific business logic and still have a single portable executable at the end.

技术栈选择

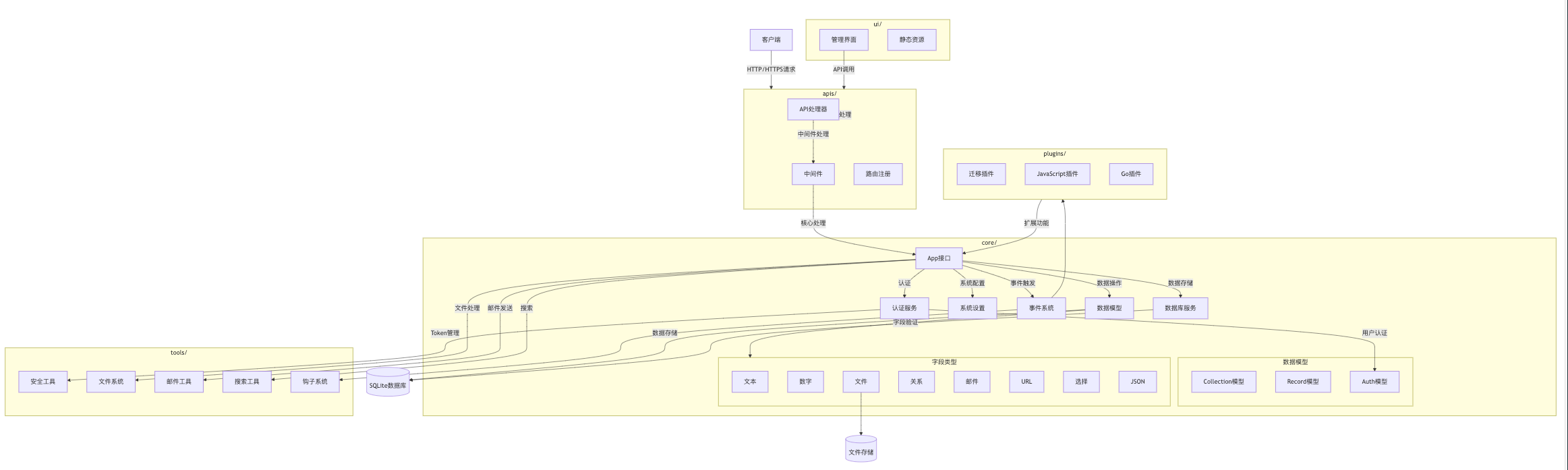

整体架构设计

目录结构

1. 核心目录

apis/: 包含 API 相关的实现代码 core/: 核心功能实现 cmd/: 命令行工具相关代码 plugins/: 插件系统 tools/: 工具类代码 ui/: 用户界面相关代码

2. 功能支持目录

forms/: 表单处理相关代码 mails/: 邮件功能相关代码 migrations/: 数据库迁移相关代码

3. 测试相关

tests/: 测试代码目录 examples/: 示例代码 pocketbase_test.go: 主程序测试文件

4. 主程序文件

pocketbase.go: 主程序入口文件

core

从 core 目录的内容可以看出,这是一个功能完整的后端框架,主要包含:

1. 数据模型相关:

  • collection_*.go: 集合/数据表相关的模型和操作
  • record_*.go: 记录相关的模型和操作
  • field_*.go: 各种字段类型的实现(text, number, file, email 等)

2. 认证相关:

  • auth_*.go: 认证相关
  • external_auth_*.go: 外部认证
  • mfa_*.go: 多因素认证
  • otp_*.go: 一次性密码

3. 数据库相关:

  • db_*.go: 数据库连接和操作
  • migrations_*.go: 数据库迁移

4. 核心功能:

  • app.go: 应用程序主体
  • base.go: 基础功能
  • events.go: 事件系统
  • settings_*.go: 系统设置
  • validators/: 验证器

目录调用关系

Text Only
请求 → 路由 → 中间件 → API处理器 → 核心服务 → 数据模型 → 存储层
↑                                     ↓
└─────────────────── 响应 ←───────────┘

2. 流程分析

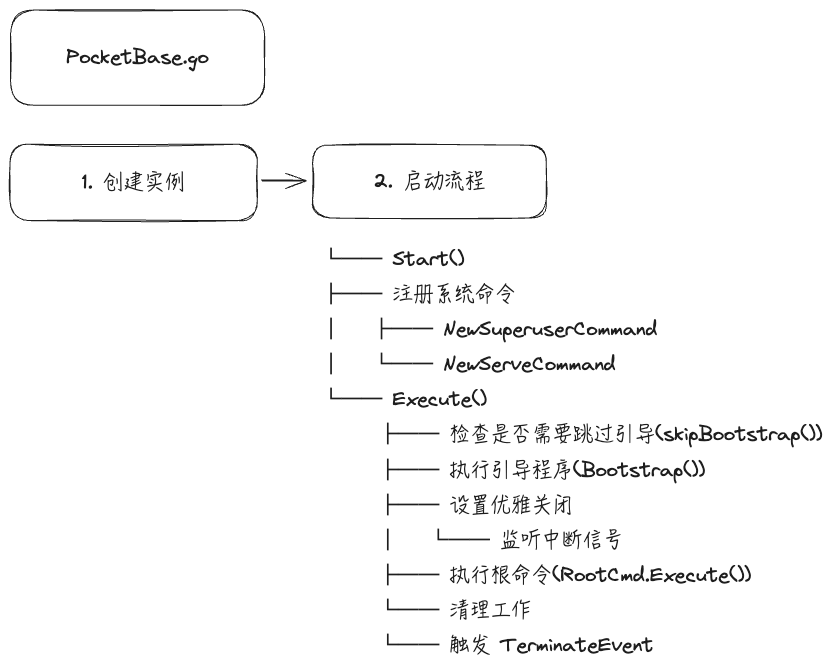

入口启动流程

3. 可学习的地方

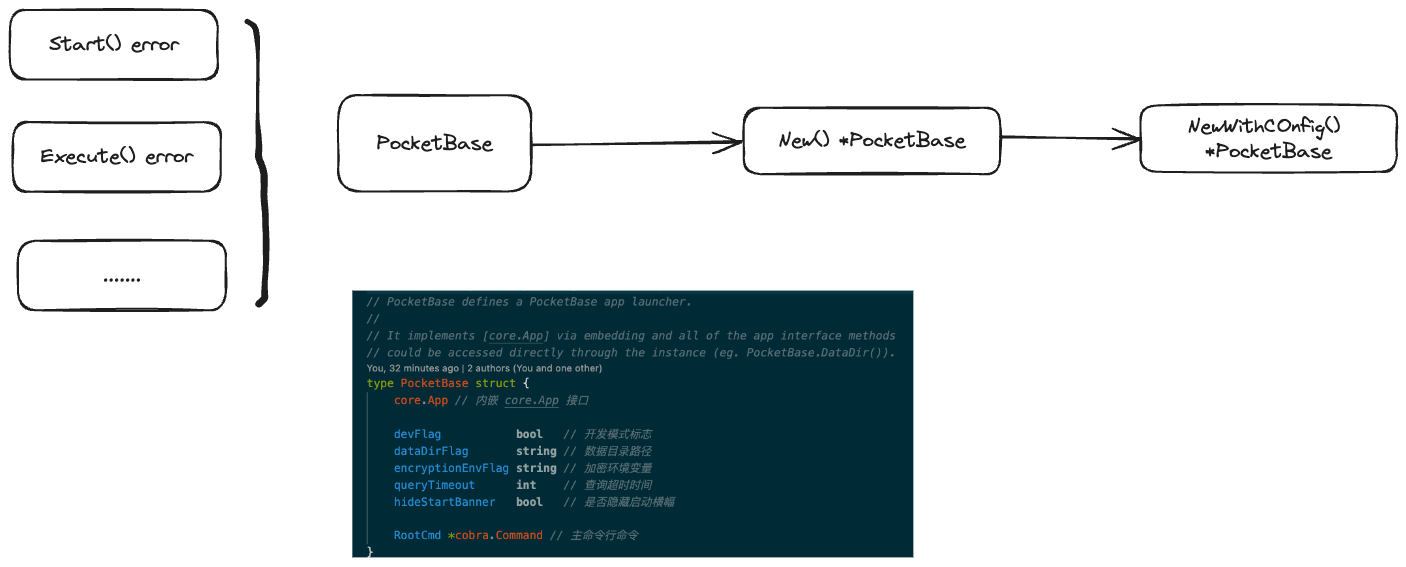

3.1 入口流程使用Base结构体进行收敛

3.2 检测运行环境(区分是通过gorun还是编译后运行)

Go
func inspectRuntime() (baseDir string, withGoRun bool) {
    if strings.HasPrefix(os.Args[0], os.TempDir()) {
        // probably ran with go run
        withGoRun = true
        baseDir, _ = os.Getwd()
    } else {
        // probably ran with go build
        withGoRun = false
        baseDir = filepath.Dir(os.Args[0])
    }
    return
}

主要作用:

  • 确定应用的基础目录(baseDir),使之能在运行时正确找到对应资源
  • 判断是否通过 go run 运行,以此来区分开发环境还是生产环境
Bash
# 开发环境
go run main.go
# os.Args[0] 会指向临时目录
# baseDir 将是当前工作目录

# 生产环境
./pocketbase
# os.Args[0] 会指向实际的二进制文件
# baseDir 将是二进制文件所在目录

3.3 识别命令场景跳过资源加载

Go
// 情况1:已经完成引导
if pb.IsBootstrapped() {
    return true
}

// 情况2:未知命令
cmd, _, err := pb.RootCmd.Find(os.Args[1:])
if err != nil {
    return true
}

// 情况3和4:帮助命令或版本命令
flags := []string{"-h", "--help", "-v", "--version"}
  • 性能优化考虑:对于简单命令(如查看帮助、版本)不需要完整的引导过程,同时避免不必要的数据库连接和资源初始化
  • 避免重复初始化:如果应用已经引导完成,不需要再次引导,同时防止多次初始化可能带来的问题
  • 命令行体验优化:帮助和版本信息应该快速响应,不应该等待完整的应用初始化
Bash
pocketbase --help  # 不需要引导就能显示帮助
pocketbase -h      # 同上

pocketbase unknown-command  # 快速返回错误,不需要引导

3.4 启动时注册系统命令区分权限

  • serve 命令:启动 Web 服务器,这是 PocketBase 最基本的功能
  • superuser 命令:管理超级用户账户,这是系统管理的必要功能
Go
    // register system commands
    pb.RootCmd.AddCommand(cmd.NewSuperuserCommand(pb))
    pb.RootCmd.AddCommand(cmd.NewServeCommand(pb, !pb.hideStartBanner))
